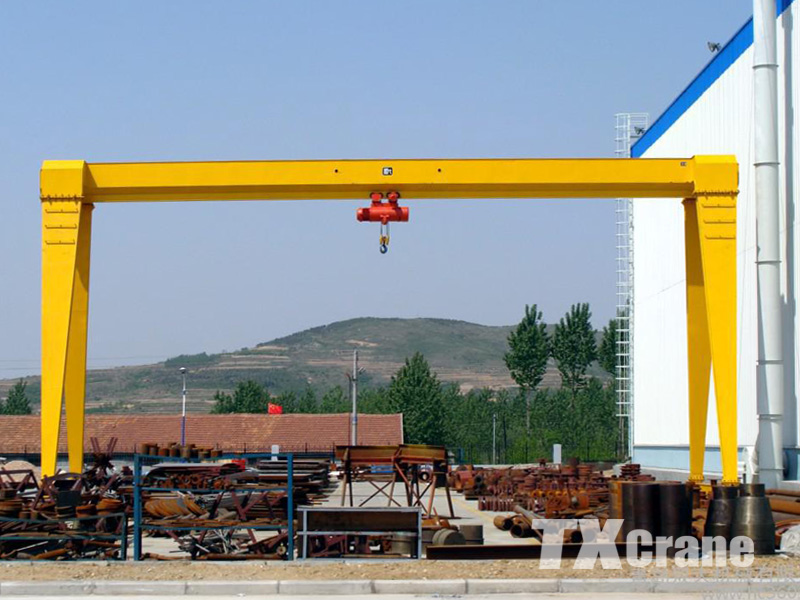

The MH Single girder gantry crane, widely used together with electric hoist is a kinds of light duty crane, according to the shape could be divided into Single Girder Gantry Crane (A type) and L shape Partial hanging Single Girder Gantry Crane (L type).
The Single girder gantry crane also have box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and special used in the windy.

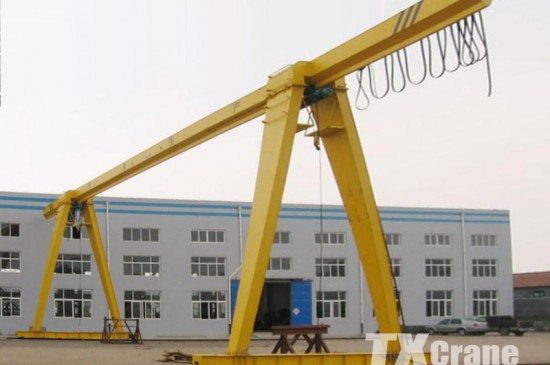

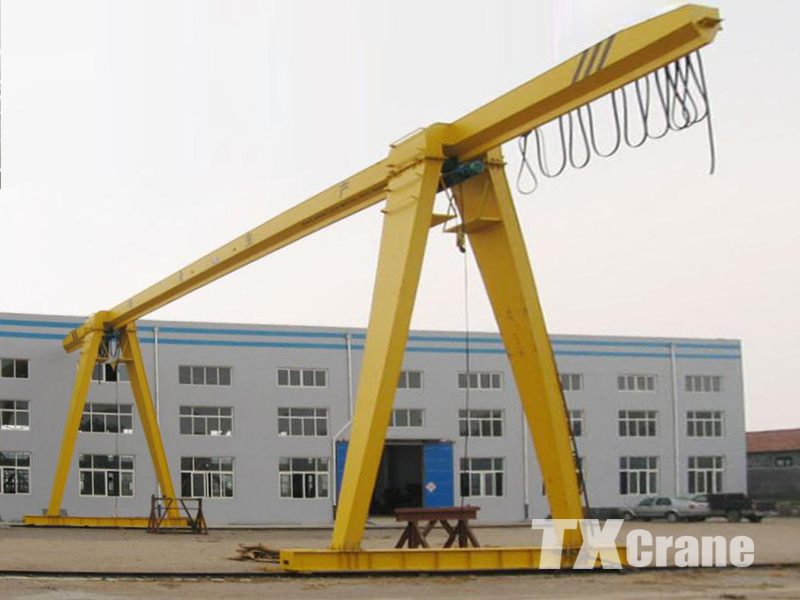

The A type Single Girder gantry crane also has cantilever and non-cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.

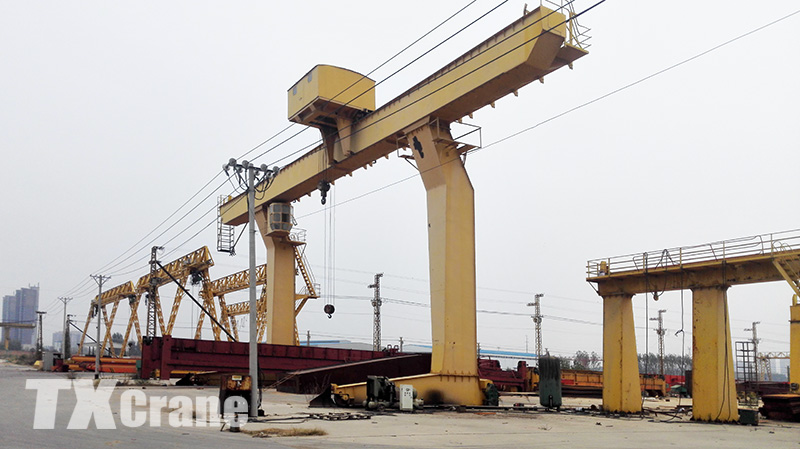

The L-Type partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, especial for piling up in narrow space, widely used in steel plant, concrete girder yard, etc.
The Single Girder Gantry Crane have following features:
1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Economical and practical
4. Easy maintenance.

The Gantry Crane power supply system are Cord Reel or Bus Bar, the traveling rail could be rail or square bar. Generally, the Gantry crane with hook, also could be lifting beam, Grab Tongs or other lifting tools as demands.

The Single Girder Gantry Crane could offer following option:
1. Capacity: 1t-32t(Auxiliary Hoist are available)
2. Span: 5-50m (Cantilever as your demands)
3. Lifting Height and Supporting Leg Height: 1-50m
3. Working Class: A3-A5 (FEM 2m-5m)
4. Speed (As you demands)
5. Structure: Box Type, Truss Type or Mix Type.
6. Control Method: Pendent, Remote and Cabin Control
7. Power Source and Painting Color as your demands

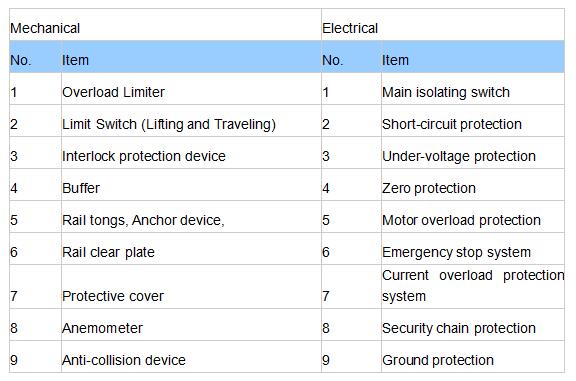

The Lifting Crane as special equipment, the safety should be put in the first place, so, we offer full set Safety Device for our crane:
