MG double girder gantry crane is ideal for outdoor or indoor applications where lifting facilities are provided without the cost of a building or any supporting steel work. The Double Girder Gantry Crane are widely used at Port, Hydro Power Plant, Shipbuilding Yard, Fabrication Yard and other outdoor plant.
The double girder overhead crane have following features:
1.Heavy Duty and High Efficient
2.Suitable for any environment ( High Temperature, Explosion Proof and so on)
3.Long Life Span: 30-50years.
4.Easy for Installation and maintenance.

The Gantry Crane power supply system are Cord Reel or Bus Bar, the traveling rail could be rail or square bar. Generally, the Gantry crane with hook, also could be lifting beam, Grab Tongs or other lifting tools as demands.

Lifting Trolley is the most important mechanism of Crane, with one hook or two hooks, even three hooks. The trolley are assembled with motor, reducer, brake, trolley frame, drum, hook, pulley, rain cover and other parts. It includes lifting mechanism and cross traveling mechanism. The power supply system of trolley is Towering cable.

Further more, according to your demands and usage, the MG Type Double Girder Gantry Crane could offer following option:
1. Capacity: 5t-500t(Auxiliary Hook or trolley are available)
2. Span: 5-150m
3. Working Class: A5-A7 (FEM 2m-5m)
4. Speed (As you demands)
5. Structure: Box Type, Truss Type or Mix Type.
6. Control Method: Pendent, Remote and Cabin Control
7. Power Source and Painting Color as your demands

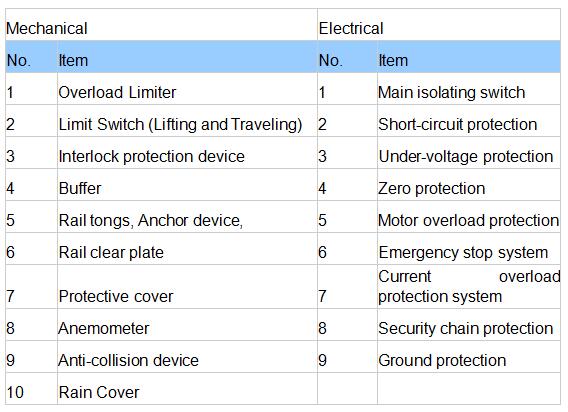

The Lifting Crane as special equipment, the safety should be put in the first place, so, we offer full set Safety Device for our crane:

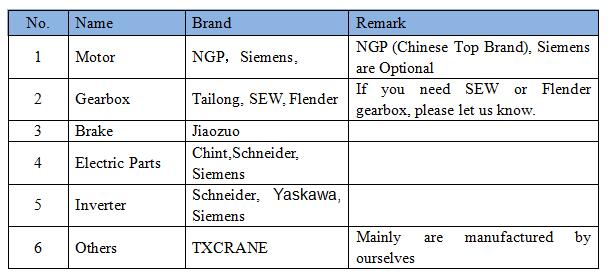

The Main parts quality have great influence for the quality of whole crane, so, we only choose the top brand as our supplier, please check the main parts brand List:

Further more, according to different usage, industry and demands, the MG type Double Girder Gantry Crane have following improved model:
1. MZ Grab Double Girder Gantry Crane
2. MC Magnetic Double Girder Gantry Crane
3. MB Explosion proof Gantry Crane
4. MDG L Type Gantry Crane
5. ME Double Trolley Gantry Crane
6. MEC Shipbuilding Gantry Crane
7. RMG Rail Mounted Container Gantry Crane
